| CQB系列磁力泵 |
 |

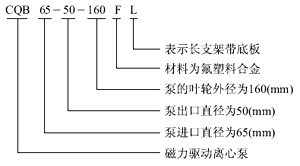

| 型号意义 |
| | 性能参数 |
型 号
CQB | 流 量Q(m3/h) | 扬程 H(m) | 汽蚀余量(MPSH)r(m) | 转 速n(r/min) | 轴功率(KW) | 效 率(%) | 配带电机功率KW | 介质密度g/cm3 | ＜1 | ＜1.3 | ＜1.84 | 32-20-125 | 1.9 3.2 3.8 | 20 20 18.5 | 5.0 | 2900 | 0.49 0.58 0.62 | 23 30 31 | Y801-2YB0.75 | Y802-2YB1.1 | Y90S-2YB1.5 | 32-20-160 | 1.9 3.2 3.8 | 34 32 29 | 3.5 | 2900 | 0.84 0.99 1.03 | 21 28 29 | Y802-2YB1.1 | Y90S-2YB1.5 | Y90L-2YB2.2 | 40-25-105 | 3.8 6.3 7.5 | 13 12.5 11 | 6.0 | 2900 | 0.42 0.55 0.56 | 32 39 40 | Y801-2 YB0.75 | Y802-2YB1.1 | Y90S-2YB1.5 | 40-25-125 | 3.8 6.3 7.5 | 22 20 18.5 | 5.0 | 2900 | 0.81 0.98 1.05 | 28 35 36 | Y802-2YB1.1 | Y90L-2YB2.2 | Y100L-2YB3.0 | 40-25-160 | 3.8 6.3 7.5 | 34 32 29 | 3.5 | 2900 | 1.41 1.72 1.79 | 25 32 33 | Y90L-2YB2.2 | Y100L-2YB3.0 | Y112M-2YB4.0 | 40-25-200 | 3.8 6.3 7.5 | 52.5 50 48 | 3.5 | 2900 | 3.02 3.43 3.77 | 18 25 26 | Y112M-2YB4.0 | Y132S1-2YB1.1 | Y132S2-2YB7.5 | 50-40-85 | 7.5 12.5 15 | 9 8 7.5 | 3.5 3.5 4.0 | 2900 | 0.46 0.56 0.61 | 40 49 50 | Y801-2YB0.75 | Y802-2YB1.1 | Y90S-2YB1.5 | 50-32-105 | 7.5 12.5 15 | 13 12.5 11 | 3.5 3.5 4.0 | 2900 | 0.76 0.91 0.94 | 35 47 48 | Y802-2YB1.1 | Y90S-2YB1.5 | Y90L-2YB2.2 | 50-32-125 | 7.5 12.5 15 | 22 20 18.5 | 3.5 3.5 4.0 | 2900 | 1.49 1.62 1.63 | 30 42 43 | Y90L-2YB2.2 | Y100L-2YB3.0 | Y112M-2YB4.0 | 50-32-160 | 7.5 12.5 15 | 34 32 29 | 3.5 3.5 4.0 | 2900 | 2.48 2.79 2.96 | 28 39 40 | Y100L-2YB3.0 | Y112M-2YB4.0 | Y132S1-2YB5.5 | 50-32-200 | 7.5 12.5 15 | 52.5 50 48 | 3.5 3.5 4.0 | 2900 | 5.10 5.49 6.13 | 21 31 32 | Y132S2-2YB7.5 | Y132S2-2YB7.5 | Y160M1-2YB11 | 50-32-250 | 7.5 12.5 15 | 82 80 78.5 | 3.5 3.5 4.0 | 2900 | 9.57 10.89 13.32 | 17.5 25 26 | Y160M2-2YB15 | Y160L-2YB18.5 | Y180M-2YB22 | 65-50-125 | 15 25 30 | 22 20 18.5 | 3.5 3.5 4.0 | 2900 | 2.25 2.67 2.91 | 40 51 52 | Y100L-2YB3.0 | Y112M-2YB4.0 | Y132S1-2YB5.5 | 65-50-160 | 15 25 30 | 34 32 29.5 | 3.5 3.5 4.0 | 2900 | 4.34 5.07 5.48 | 32 43 44 | Y132S1-2YB5.5 | Y132S2-2YB7.5 | Y160M1-2YB11 | 65-40-200 | 15 25 30 | 53 50 47 | 3.5 3.5 4.0 | 2900 | 8.66 9.20 10.1 | 25 37 38 | Y160M1-2YB11 | Y160M2-2YB15 | Y160L-2YB18.5 | 65-40-250 | 15 25 30 | 82 80 78.5 | 3.5 3.5 4.0 | 2900 | 13.4 14.72 16.88 | 25 37 38 | Y160L-2YB18.5 | Y180M-2YB22 | Y200L1-2YB30 | 80-65-125 | 30 50 60 | 22.5 20 18 | 4.0 4.0 4.5 | 2900 | 4.48 5.24 5.55 | 41 52 53 | Y132S1-2YB5.5 | Y132S2-2YB7.5 | Y160M1-2YB11 | 80-65-160 | 30 50 60 | 34 32 29 | 4.0 4.0 4.5 | 2900 | 7.72 9.08 9.67 | 36 48 49 | Y160M1-2YB11 | Y160M2-2YB15 | Y160L-2YB18.5 | 80-50-200 | 30 50 60 | 53 50 47 | 4.0 4.0 4.5 | 2900 | 12.03 14.80 16.34 | 36 46 47 | Y160L-2YB18.5 | Y180M-2YB22 | Y200L1-2YB30 | 80-50-250 | 30 50 60 | 84 80 75 | 4.0 4.0 4.5 | 2900 | 19.06 23.68 26.07 | 36 46 47 | Y200L1-2YB30 | Y200L2-2YB37 | Y225M-2YB45 | 100-80-125 | 60 100 120 | 23 20 16.5 | 4.0 4.0 4.5 | 2900 | 8.35 9.73 9.46 | 45 56 57 | Y160M1-2YB11 | Y160M2-2YB15 | Y160L-2YB18.5 | 100-80-160 | 60 100 120 | 35 32 28 | 4.0 4.0 4.5 | 2900 | 12.43 15.85 16.34 | 46 55 56 | Y160L-2YB18.5 | Y180M-2YB22 | Y200L1-2YB30 | 100-65-200 | 60 100 120 | 54 50 47 | 4.0 4.0 4.5 | 2900 | 21.01 25.69 28.44 | 42 53 56 | Y200L1-2YB30 | Y200L2-2YB37 | Y225M-2YB45 | 100-65-250 | 60 100 120 | 86 80 74.5 | 4.0 4.0 4.5 | 2900 | 37.98 45.39 49.69 | 37 48 49 | Y225M-2YB45 | Y250M-2YB55 | Y280S-2YB75 |
|
