| S、Sh型单级双吸离心泵 |
 |

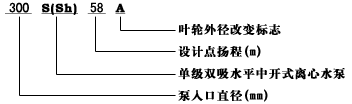

| 型号意义 |
|  |
| | 性能参数 |
型 号 | 流 量
Q
(m3/h) | 扬 程
H
(m) | 转 速
n
(r/min) | 功 率 (KW) | 效 率
(%) | 汽蚀余量
(NPSH)r
(m) | 重 量
(kg) | 轴功率 | 电机功率 | 150S78 | 126
160
198 | 82
78
70 | 2950 | 40
45
52 | 55 | 70
75.5
72 | 3.7 | 140 | 150S78A | 112
144
180 | 67
62
55 | 30.1
33.4
38.5 | 45 | 68
72.6
70 | 150S50 | 130
160
220 | 52
50
40 | 25.2
27.3
31.1 | 37 | 73
80.4
77 | 3.9 | 130 | 150S50A | 112
144
180 | 44
40
35 | 18.6
20.0
24.5 | 30 | 72
75.5
70 | 150S50B | 108
133
160 | 38
36
32 | 17.2
18.0
19.4 | 22 | 65
72.5
72 | 200S95 | 183
280
324 | 103
95
87 | 83.1
91.4
102.4 | 132 | 62
79.2
75 | 5.3 | 260 | 200S95A | 180
260
306 | 92
85
78 | 67.3
83.3
94.3 | 110 | 67
75
73 | 200S95B | 216
280
351 | 82
75
68 | 64.8
73.8
80.9 | 90 | 62
72
70 | 200S63 | 180
270
324 | 69
63
53 | 54.8
58.3
66.7 | 75 | 74
82.7
76 | 5.8 | 230 | 200S63A | 216
280
324 | 54
46
37 | 37.8
45.1
46.6 | 55 | 70
75
70 | 200S42 | 216
280
324 | 48
42
35 | 34.8
38.1
40.2 | 45 | 81
84.2
81 | 6 | 180 | 200S42A | 198
270
310 | 43
36
31 | 30.5
33.1
34.4 | 37 | 76
80
76 | 250S65 | 360
485
612 | 71
65
58 | 1450 | 92.8
109.2
130.6 | 132 | 75
78.6
74 | 3.1 | 485 | 250S65A | 342
420
540 | 61
48
50 | 77
88.5
98 | 90 | 74
77.7
75 | 250S39 | 360
485
612 | 42
39
32 | 54.2
61.5
67.5 | 75 | 76
83.6
79 | 3.2 | 380 | 250S39A | 324
468
576 | 35
30
25 | 41.7
48.4
50.9 | 55 | 74
79
77 | 250S24 | 360
485
576 | 27
24
19 | 33.1
36.9
36.4 | 45 | 80
85.8
82 | 3.5 | 365 | 250S24A | 324
414
482 | 22
20
17 | 25.6
27.2
27.9 | 37 | 80
83.3
82 | 250S14 | 360
485
576 | 16
14
11 | 19.6
21.5
22.1 | 30 | 80
85.8
78 | 3.8 | 320 | 250S14A | 324
414
482 | 13
11
8 | 14.5
15.2
14.6 | 18.5 | 78
82.7
75 | 300S90 | 590
790
936 | 93
90
82 | 202
243
279 | 320 | 74
79.6
75 | 4.2 | 840 | 300S90A | 576
756
918 | 86
78
70 | 190
216.4
247 | 280 | 71
74.2
71 | 300S90B | 540
720
900 | 72
67
57 | 150
180
200 | 220 | 70
73
70 | 300S58 | 576
790
972 | 63
58
50 | 131.8
147.9
165.5 | 200 | 75
84.2
80 | 4.4 | 810 | 300S58A | 529
720
893 | 53
49
42 | 100.5
118.0
130.9 | 160 | 76
82.5
78 |
|
