| NL型泥浆泵 |
 |

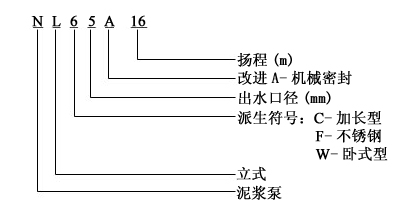

| 型号意义： |  |
性能参数 型号 | 转速
r/min | 流量
立方米/h | 扬程
m | 效率
% | 电机功率
KW | 全机泵重
kg | 立式泵全长
mm | NL50-8 | 1430 | 20-30 | 8-9 | 42 | 1.5 | 63 | 1310 | NL50A-8 | 1430 | 20-30 | 8-9 | 42 | 1.5 | 63 | 1310 | NL50-12 | 1430 | 25-38 | 12-14 | 41 | 3 | 80 | 1310 | NL50A-12 | 1430 | 25-38 | 12-14 | 41 | 3 | 80 | 1310 | NL65-16 | 1430 | 50-60 | 15-18 | 42 | 5.5 | 152 | 1430 | NL65A-16 | 1430 | 50-60 | 15-18 | 42 | 5.5 | 152 | 1430 | NL76-9 | 1430 | 50-70 | 9-10 | 59 | 3 | 80 | 1330 | NL76A-9 | 1430 | 50-70 | 9-10 | 59 | 3 | 80 | 1330 | NL80-12 | 1430 | 80-120 | 11-13 | 56 | 7.5 | 145 | 1430 | NL80A-12 | 1430 | 80-120 | 11-13 | 56 | 7.5 | 145 | 1430 | NL100-16 | 1430 | 80-100 | 15-17 | 61 | 15 | 270 | 1510 | NL100A-16 | 1430 | 80-100 | 15-17 | 61 | 15 | 270 | 1510 | NL150-12 | 1430 | 100-150 | 11-13 | 66 | 18.5 | 350 | 1690 | NL150A-12 | 1430 | 100-150 | 11-13 | 66 | 18.5 | 350 | 1690 | NL150-16 | 1430 | 120-180 | 15-20 | 65 | 22 | 390 | 1690 | NL150A-16 | 1430 | 120-180 | 15-20 | 65 | 22 | 390 | 1690 |
|
